Watch Lug Width Guide — Measure, Fit & Popular Models

You’ve found a strap you want. The leather is right, the colour works, and the price is fair. Then you see the listing says “20/16mm” and you pause — because you’re not entirely sure what size your watch actually takes. This is the moment most strap purchases go wrong, and it happens because the terminology around watch sizing is rarely explained in full. This guide covers everything you need before buying a replacement strap: what lug width is, how to find yours in under two minutes, how to read strap size notation, and when the standard rules don’t apply. By the end, there’s no guesswork left.

What Is Watch Lug Width — and Why Does It Matter?

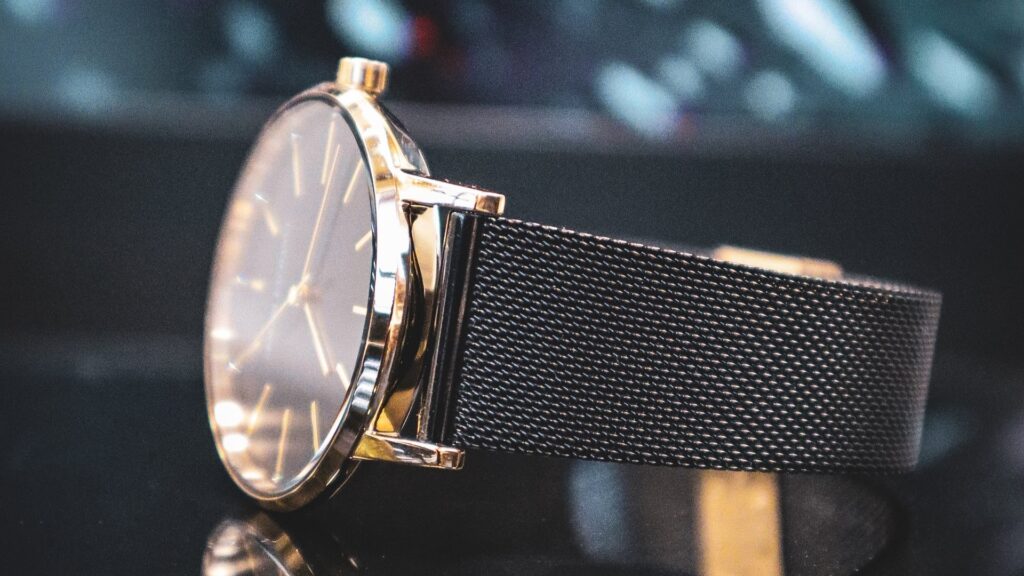

Lugs are the four metal projections that extend from the watch case — two at the top, two at the bottom — and they hold the strap in place via small cylindrical pins called spring bars. Lug width is the internal distance between the two lugs on the same side of the case. Not the outer width of the lugs themselves. The internal gap. That distinction matters because it’s the measurement your strap must match exactly.

The full spectrum of lug widths runs from 6mm up to 30mm, but the range that covers almost every modern men’s watch sits between 16mm and 24mm. Within that range, 18mm, 20mm, and 22mm account for the vast majority of watches on the market, with 20mm being the single most common size for men’s watches. Modern watches are almost always manufactured to whole even numbers — so if you measure 19.7mm, the answer is almost certainly 20mm.

Getting the size wrong isn’t just an aesthetic problem. A strap that’s too narrow will sit loosely between the lugs, shift on the wrist, and leave visible gaps on either side. A strap that’s too wide won’t seat properly at all — and forcing it risks damaging the strap edges or, worse, the spring bar slots themselves. The fit has to be exact, and that starts with knowing your number.

How to Find Your Watch’s Lug Width: Two Methods

There are two reliable ways to find your lug width. The first takes thirty seconds if you know your model number. The second takes two minutes and a basic measuring tool. Either works — use whichever suits your situation.

Method 1: Look It Up by Model Number

1. Find your watch’s model number. It’s usually engraved on the caseback, printed on the warranty card, or listed in the original box paperwork. On some watches it also appears on the dial or crown side of the case.
2. Open a search engine and type the brand name followed by the model number and the words “lug width.” For example: Omega Speedmaster 310.30.42.50.01.001 lug width. The brand’s official specification page or a watch database will return the answer in the first result.
3. Confirm the number is in millimeters — not inches. This is a common point of confusion for first-time buyers, and watch specifications are always given in millimeters.

This method is the fastest and most reliable when you have the model number to hand. If you don’t, or if your watch is obscure enough that the spec isn’t easily found online, measure directly.

Method 2: Measure the Lug Gap Directly

1. Set your watch face-down on a soft surface so the lugs are accessible.
2. Position your measuring tool across the inside gap between the two lugs on one side of the case — not across the outside of the lugs. The inside gap is what the strap end must fit into.
3. Read the measurement in millimeters. A vernier caliper or digital caliper gives the most accurate result, reading to within 0.01mm. A millimeter ruler is a reliable alternative for most purposes. A dedicated watch lug measuring ruler — a small tool with notches sized from 6mm to 30mm — offers a third option: slide each notch between the lugs until you find the one that fits with no movement or play.
4. If your reading falls between whole numbers, round to the nearest whole size. Watches are manufactured to standard widths, and a genuine half-millimeter lug width is extremely rare on any modern watch. If you measure 20.4mm, the answer is 20mm.

For the most accurate possible reading, a quality digital caliper is the tool watch enthusiasts reach for first. a dedicated watch lug measuring ruler with notches from 6mm to 30mm is a more accessible and watch-specific option that removes any ambiguity from the reading — particularly useful if you’re measuring multiple watches or plan to buy straps regularly.

Lug Width Reference Chart: Popular Men’s Watches

If your watch is one of the models below, you already have your answer. This chart covers the most commonly searched references — useful both as a quick lookup and as a cross-check against your own measurement. Note that the watch size guide covers case diameter and proportions in more depth if you want to understand how these numbers relate to overall wearability.

The pattern here is clear: 20mm and 22mm cover the overwhelming majority of modern men’s watches. If your model isn’t listed, those are the two sizes to check first. One practical shortcut worth knowing — many leather straps have the lug width stamped on the reverse side of the lining. A stamp reading “22” simply means 22mm. If you still have your original strap, flip it over before reaching for a ruler.

Beyond Lug Width: Lug-to-Lug Distance, Buckle Width, and Strap Notation Explained

Lug width determines which strap physically fits your watch. But there are two other measurements that affect how a strap looks and wears — and both are regularly misunderstood.

Lug-to-Lug Distance

Lug-to-lug is the full length of the watch case measured from the tip of the upper lugs to the tip of the lower lugs. It has nothing to do with which strap fits — it tells you how the watch will sit on your wrist. A long lug-to-lug measurement means the case will overhang smaller wrists, even if the case diameter looks proportionate on paper.

The difference this makes in practice is significant. The Longines Skin Diver and the Omega Speedmaster both carry a 42mm case diameter — the same number on the spec sheet. But the Skin Diver has a lug-to-lug of 52.5mm while the Speedmaster sits at 47mm. On the wrist, the Speedmaster wears noticeably more compact. Same case size, very different experience. This is why lug-to-lug matters when you’re evaluating a watch to buy, even if it plays no role in strap selection.

Understanding the Dual-Number Strap Notation

Almost every strap listing you’ll encounter shows two numbers separated by a slash — for example, 20/16mm. This notation is rarely explained anywhere, which causes genuine confusion at the point of purchase.

The first number is the lug width: the width of the strap at the end that attaches to the watch. This is the measurement that must match your watch exactly. The second number is the buckle-end width: the narrower end of the strap where the buckle sits. Straps taper from wider at the lug end to narrower at the buckle end — this is intentional. It improves comfort on the wrist and creates a cleaner visual line toward the clasp.

So a 20/16mm strap attaches to a 20mm lug width and tapers to 16mm at the buckle. Both numbers matter, but for different reasons. The first number is your compatibility filter. The second tells you what size buckle or deployant clasp the strap is designed to accept. A deployant clasp needs to match the buckle-end width of the strap — not the lug width. This is a detail that catches people out when they’re upgrading hardware separately from the strap itself. For a deeper look at how different clasp types work, that’s worth reading before you buy hardware separately.

How Lug Shape Affects Strap Compatibility

Lug width is only part of the compatibility picture. The shape of the lugs matters too — particularly when you’re buying a leather strap or a rubber strap that needs to sit flush against the case.

Straight lugs are the most common and work with the widest range of standard straps. Curved lugs angle downward from the case and require a strap with a curved end cut to match — a flat-ended strap on curved lugs will gap at the case edge. Drilled lugs have visible holes through which the spring bar passes, making strap changes easier and also making it obvious when the spring bar is correctly seated. Down-turned lugs curve toward the wrist and typically require a strap with a specific end shape to sit properly. Integrated lugs are a different category entirely — covered in the next section.

If you’re buying a NATO strap, lug shape is less of a concern since the strap passes underneath the watch rather than clipping between the lugs. For more on how NATO straps work and when to use them, that guide covers the full picture.

When Standard Sizing Rules Don’t Apply: Integrated Cases and Vintage Watches

For most readers with a modern watch, lug width is a straightforward number. But two categories of watches operate by different rules entirely.

Integrated Case Watches

An integrated lug design means the strap or bracelet flows directly from the case as part of a unified design — the case and strap are conceived together, and the strap width at the lug end doesn’t correspond to the actual lug gap in the traditional sense. The Bell & Ross BR05 is the clearest example of how this breaks down: the watch has an actual lug width of just 12mm, but uses a 24mm strap because the case architecture is designed around that strap width. Fitting a standard 24mm strap to this watch is impossible — it requires a strap made specifically for the BR05.

This isn’t a common problem for most buyers, but it’s worth knowing before you assume any 24mm strap will work on any 24mm watch.

Vintage Watches

Vintage watches present a genuinely different challenge. Older pieces were often manufactured to non-standard widths — 17.5mm, for instance — that don’t correspond to anything in a modern strap catalogue. Beyond the width issue, vintage cases sometimes have shallow spring bar slots that don’t grip a standard spring bar securely. Even when the correct strap is installed, the spring bar can slip, creating a safety risk.

If you own a vintage piece, don’t assume standard sizing guidance applies. Consult a specialist strap retailer who works with vintage watches before ordering anything — the wrong approach can damage a case that may be irreplaceable.

The 50% Rule: A Quick Sanity Check for Lug Width

When you can’t measure and can’t find the model number, there’s a useful rule of thumb that works surprisingly well for modern watches: lug width is approximately 50% of the case diameter.

A 40mm case typically takes a 20mm strap. A 44mm case typically takes a 22mm strap. A 38mm case typically takes an 18mm or 19mm strap — lean toward 18mm as the standard size. This rule won’t work for every watch, and it doesn’t account for the integrated case exceptions above, but it narrows the field to one or two candidate sizes quickly.

Use it as a starting point, not a final answer. Once you have a candidate size, confirm it with a measurement or a model lookup before purchasing. The rule gets you close — measurement gets you right.

Frequently Asked Questions

What is lug width on a watch?

Lug width is the internal distance between the two lugs on one side of the watch case — measured in millimeters. It’s the gap your strap end must fit into exactly. It is not the outer width of the lugs themselves, which is a common point of confusion. Your replacement strap must match this number precisely for a correct fit.

What does 20/16mm mean on a watch strap?

The first number — 20mm — is the lug width, meaning the strap is 20mm wide at the end that attaches to the watch. The second number — 16mm — is the buckle-end width after the strap tapers. Straps narrow toward the buckle for comfort and proportion. Your watch’s lug width must match the first number. The second number tells you what size buckle the strap requires.

What happens if my watch strap is 1mm too narrow or too wide?

A strap that’s 1mm too narrow will shift laterally between the lugs and leave visible gaps on either side — it won’t stay centered. A strap that’s 1mm too wide typically won’t seat into the lug gap at all, and attempting to force it can damage the strap edges or the spring bar slot in the case. Neither situation is a minor inconvenience — both require a correctly sized replacement.

Can I measure lug width with a regular ruler?

Yes — a millimeter ruler is a practical and accessible option. Make sure it has clear millimeter markings, and position it across the inside gap between the lugs, not the outside. A vernier caliper or digital caliper gives a more precise reading, but a ruler is accurate enough to identify the correct standard size in most cases.

What if my lug width measurement is not a whole number?

Round to the nearest whole number. Modern watches are manufactured to standard widths, so a genuine mid-measurement like 20.5mm is extremely unlikely. If your reading is 19.7mm, the answer is 20mm. If you measure exactly between two standard sizes and remain uncertain, contact the strap retailer with your measurement before ordering.

What is the most common lug width for men’s watches?

20mm is the most common lug width for men’s watches, followed closely by 22mm. If you’re buying a strap for a modern men’s watch and haven’t confirmed your size yet, these two are the most likely candidates. The watch lug width guide above includes a reference chart covering the most popular models if you want a quick answer by model name. For watches like the Seiko SKX, 22mm is the correct size — a detail worth confirming before buying.

Do vintage watches use standard lug widths?

Not always. Vintage watches were sometimes built to non-standard widths — 17.5mm is a known example — that have no direct equivalent in modern strap catalogues. They may also have shallower spring bar slots than contemporary cases, which can cause the strap to slip even when the width is correct. If you own a vintage watch, treat standard sizing guidance as a starting point only and confirm with a specialist.

Once I know my lug width, how do I actually change the strap?

You’ll need a spring bar tool to compress and release the spring bars that hold the strap in place. The Bergeon 6767-F spring bar tool is the benchmark option used by watchmakers and enthusiasts — it’s precise enough to work cleanly without scratching the case, and around $30 is a reasonable investment for a tool you’ll use every time you change a strap.

Lug width is the one number that determines whether your new strap fits at all. Get it right and every other decision — material, colour, buckle style — becomes straightforward. The fastest route is a model number lookup; the most reliable is a direct measurement with a caliper. Either takes under two minutes. If your watch is modern and your measurement rounds cleanly to 20mm or 22mm, you’re almost certainly in the right place. For anything older or architecturally unusual, verify before you buy. The strap market offers more choice than ever across leather, rubber, NATO, sailcloth, and every other band type — knowing your lug width is simply the key that opens all of it.
