Parts of a Watch Movement: A Detailed Guide

A watch movement is the heart and soul of any timepiece, responsible for keeping accurate time and powering its intricate mechanisms. Within this intricate mechanism lies a world of finely crafted components, each playing a crucial role in the overall functioning of the watch. From the mainspring to the escapement and balance wheel, understanding the different parts of a watch movement is key to appreciating the craftsmanship and engineering behind these remarkable devices.

In this blog post, we will take a closer look at the essential parts of a watch movement, unraveling the complexities and highlighting the significance of each component. Whether you are a watch enthusiast or simply curious about the inner workings of these mechanical wonders, join us as we delve into the fascinating world of watch movements and explore the key parts that bring timekeeping to life.

Note: In the realm of watch movements, two main types exist: mechanical movements (Manual & Automatic) and quartz movements. In this discussion, we will focus on the components of a mechanical movement, which is known for its intricate craftsmanship and traditional horological artistry. So without further ado, let’s get started.

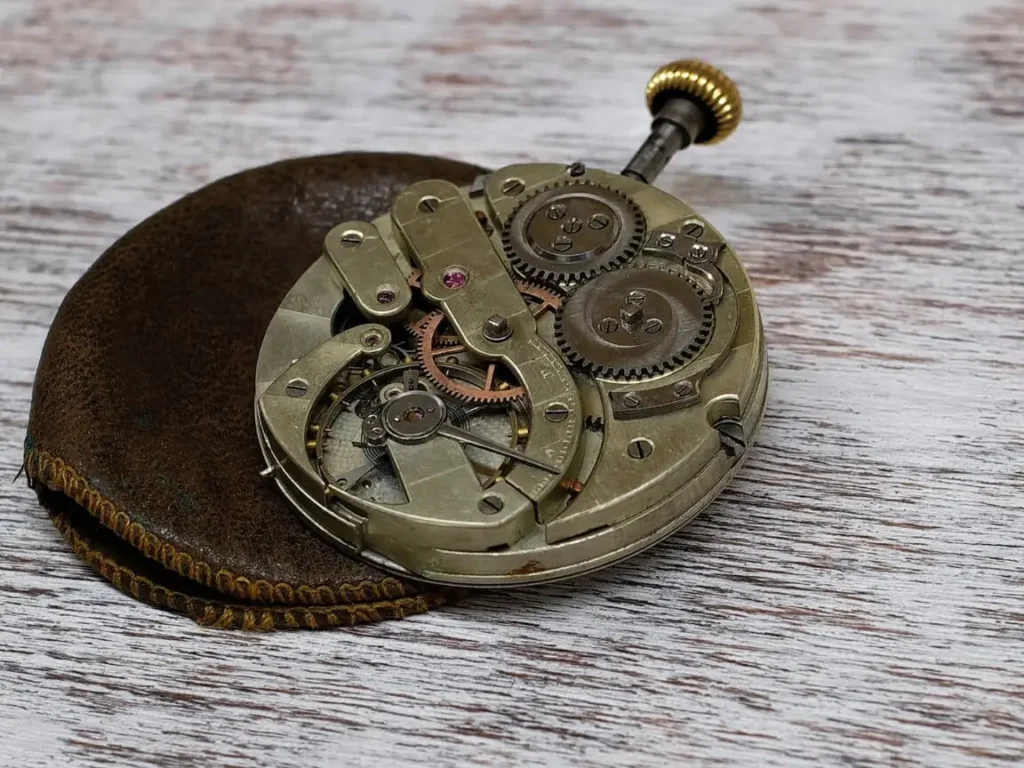

Mechanical Watch Movement

1. Mainspring

The mainspring is a fundamental component of a mechanical watch movement, responsible for storing and releasing energy to power the watch. It is a coiled spring made of a resilient metal, typically steel or alloys like Nivarox, known for their elasticity and durability.

The main spring is housed within the barrel, a cylindrical container that holds the coiled spring. When the mainspring is wound, potential energy is stored in the form of tension within the coiled structure. This potential energy is gradually released as the main spring unwinds, supplying the necessary power to drive the movement.

Winding the main spring can be done manually by turning the crown or automatically through the natural motion of the wearer’s wrist (in the case of automatic or self-winding watches). As the main spring unwinds, it transfers energy to the gear train, which is a series of gears and pinions responsible for transmitting and regulating the energy throughout the movement.

The length and thickness of the main spring determine the power reserve of the watch, which refers to the duration the watch can run before requiring winding or additional power. The power reserve can vary from a few hours to several days, depending on the design and specifications of the watch.

2. Barrel

The barrel, also known as the mainspring barrel is a cylindrical component in a watch movement that houses the main spring. It plays a crucial role in the power delivery system of the watch. The barrel is equipped with teeth on its outer edge, which engage with the gear train.

As the main spring unwinds, the barrel rotates, transmitting the stored energy to the gear train. The gear train then distributes the energy to various parts of the movement, such as the escapement and dial train.

The size and design of the barrel can vary depending on the watch movement and its intended power reserve. Some barrels are larger to accommodate longer power reserves, while others are smaller for watches with shorter power reserves.

To optimize performance, the barrel may incorporate additional features such as a slipping clutch mechanism or a maintaining power system. The slipping clutch helps prevent over-winding by allowing the barrel to slip when the main spring reaches its maximum tension. The maintaining power system ensures a constant power supply to the movement, even when the watch is being wound.

3. Gear Train

The gear train is a critical part of a watch movement that plays a crucial role in transmitting and regulating the energy from the mainspring to the various components of the watch.

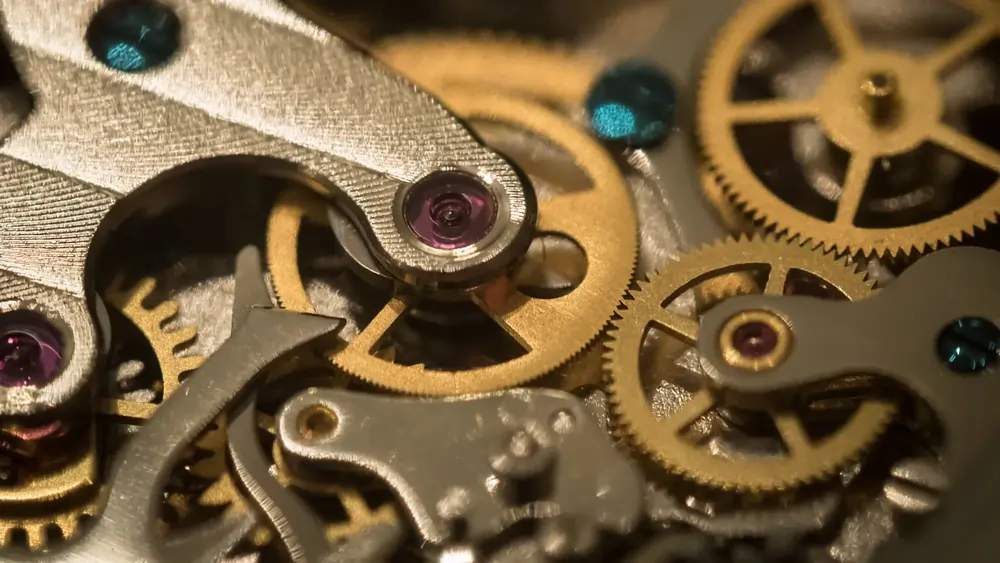

Gear Train of Watch Movement

The gear train consists of a series of gears and pinions that are carefully arranged to transfer power and control the speed at which it is delivered. Each gear has a specific number of teeth, and the size and ratio of these gears determine the movement’s overall speed and functionality.

The first gear in the gear train is connected to the mainspring barrel, which receives the energy from the mainspring. As the mainspring unwinds, the energy is transmitted to the subsequent gears and pinions, ultimately driving the hands and other complications of the watch.

The gear train also incorporates additional components such as jewels, which act as bearings to reduce friction and wear. These jewels, often synthetic rubies, are strategically placed at critical points within the gear train to ensure smooth rotation and durability.

The number of gears and their arrangement can vary depending on the complexity of the movement and any additional complications it may have, such as date displays, chronograph functions, or moon phase indicators. Each gear and pinion within the gear train has a specific function and position to ensure the proper functioning of the watch.

4. Escapement & Balance Wheel

The escapement is a crucial component of a mechanical watch movement that controls the release of energy from the mainspring and regulates the timekeeping function of the watch.

Escapement & Balance Wheel of watch movement

The escapement consists of several parts working together, including the escape wheel, pallet fork, and balance wheel. The escape wheel is a toothed wheel connected to the gear train, and the pallet fork engages with the escape wheel. The balance wheel oscillates back and forth, driven by the energy transferred from the escapement.

The escapement functions by allowing the escape wheel to move forward incrementally, unlocking the energy stored in the mainspring. As the escape wheel moves, it interacts with the pallet fork, causing it to oscillate. The pallet fork has two small arms called pallets that engage with the escape wheel teeth, alternately locking and unlocking its motion.

This unlocking action of the pallet fork allows the escape wheel to move forward one tooth at a time, releasing a measured amount of energy with each tooth. The balance wheel, which is regulated by the hairspring, receives impulses from the escapement, causing it to oscillate with a specific frequency.

The escapement’s function is to maintain a constant and precise oscillation of the balance wheel, ensuring accurate timekeeping. It does so by controlling the release of energy from the mainspring in a regulated manner. The escapement essentially divides the continuous flow of energy from the mainspring into small, measured increments, allowing the watch to keep time accurately.

5. Balance Spring

The balance spring, also known as the hairspring, is a delicate, spiral-shaped spring that is attached to the balance wheel. It helps regulate the oscillations of the balance wheel, ensuring consistent and accurate timekeeping.

6. Dial Train

The dial train, also known as the motion works, is a component of a watch movement that is responsible for driving and synchronizing the hands on the watch dial to indicate the time.

The dial train can also be described as a subset of the gear train within a watch movement. While the gear train encompasses the entire power transmission system of the movement, including various components and functions, the dial train specifically focuses on driving and synchronizing the hands on the watch dial.

Within the gear train, there are specific gears and pinions dedicated to the dial train. These components are responsible for transferring rotational motion from the mainspring barrel to the hour, minute, and sometimes second hands of the watch. They are carefully designed and positioned to ensure accurate time indication on the dial.

The dial train typically includes the center wheel, which receives power from the gear train and is connected to the minute hand. The center wheel’s rotation determines the movement of the minute hand around the dial. Additionally, the dial train incorporates the cannon pinion, which is concentrically positioned with the center wheel and drives the hour hand.

In some movements, an additional wheel, known as the seconds wheel, is included in the dial train to drive the second hand. This wheel allows for the display of seconds on the watch dial. It meshes with the center wheel or a dedicated fourth wheel to transfer rotational motion.

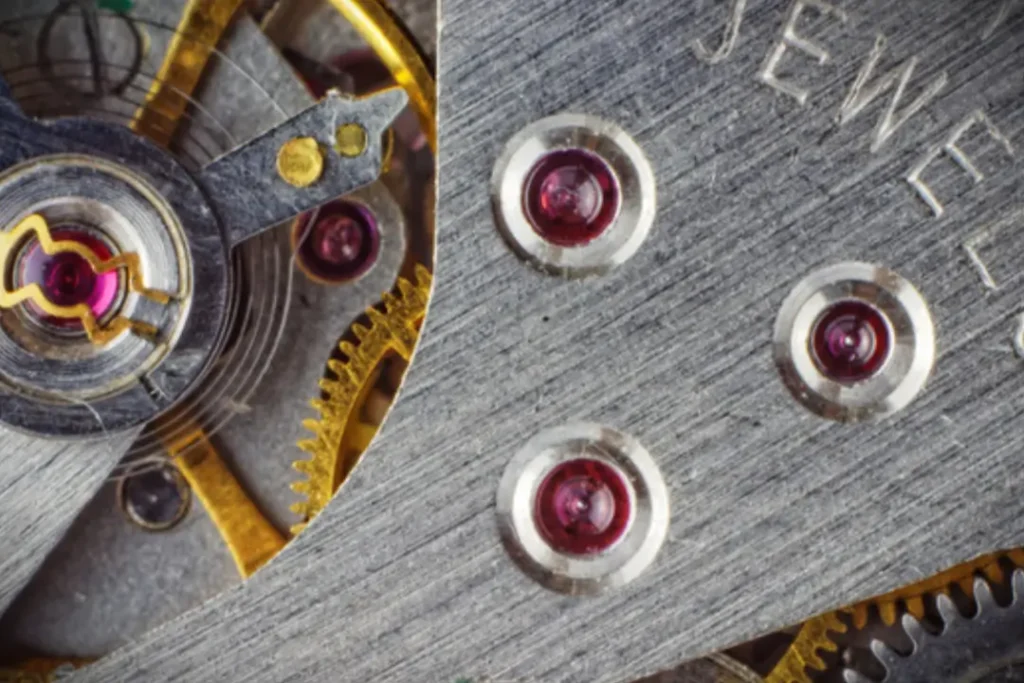

7. Jewels

Jewels, in the context of watchmaking, are small synthetic gemstones used as bearings in the movement of a mechanical watch. These jewels play a crucial role in reducing friction and wear between the moving parts of the watch, thereby improving its accuracy and longevity.

Traditionally, watch movements used metal bearings, which required regular lubrication to minimize friction and ensure smooth operation. However, metal-to-metal contact can cause wear over time, leading to a decrease in accuracy and potential damage to the movement.

To address this issue, watchmakers started using synthetic gemstones as bearing surfaces. The most commonly used jewel material in watchmaking is synthetic ruby, although sapphire and other materials can also be used. These gemstones are carefully cut and shaped into small, smooth bearings that fit precisely into the movement.

Jewels are strategically placed at various points within the movement where there is high friction and rotational movement. The most critical areas include the balance wheel, pallet fork, escape wheel, and other key components of the gear train. By incorporating jewels at these points, the watch movement can operate with reduced friction, allowing for smoother and more precise timekeeping.

The primary advantage of using jewels in watch movements is their hardness and low coefficient of friction. Jewels are harder than metal, providing a durable and wear-resistant surface for the rotating parts of the watch. Additionally, the smooth surface of the jewels helps to distribute lubrication more evenly, ensuring consistent performance and reducing the need for frequent maintenance.

The number of jewels in a watch movement can vary depending on its complexity and intended purpose. Higher-end mechanical watches often feature movements with a greater number of jewels, typically ranging from 17 to 25 or more. However, it’s important to note that the number of jewels does not necessarily indicate the quality or accuracy of a watch. Other factors such as the design, craftsmanship, and precision of the movement also play significant roles.

8. Crown

Within a mechanical watch movement, the crown is a vital component that facilitates the adjustment and operation of various functions. It serves as the external interface that allows the wearer to interact with the movement without needing to open the watch case.

The crown is typically connected to the winding stem, a slender rod that extends into the movement. The winding stem transmits the rotational motion from the crown to the keyless works, a set of gears and mechanisms responsible for controlling the winding, time setting, and other functions.

When the crown is pushed in and in its default position, it engages with the winding pinion. This allows the wearer to manually wind the mainspring by rotating the crown in a clockwise direction. As the crown turns, the winding pinion meshes with the crown wheel, transferring the rotational energy to the mainspring, which stores the potential energy that powers the watch.

To set the time, the wearer pulls the crown out to a specific position, often referred to as the “setting” position. This action disengages the winding pinion from the crown wheel and allows the wearer to freely rotate the hands on the dial to the desired time. The connection between the crown and the keyless works enables the smooth adjustment of the hour and minute hands.

Depending on the watch’s complications, such as date or other additional functions, the crown may have further positions and functions. Pulling the crown to different positions beyond the time-setting position enables the adjustment of these complications. The specific configuration and functions of the crown positions vary among different watch types and movement designs.

In some watches, particularly those with higher water resistance, the crown may feature a screw-down mechanism. This requires the wearer to unscrew the crown before it can be pulled out or adjusted. This design enhances the watch’s water resistance by creating a tight seal when the crown is screwed back in after adjustment.

The crown, along with its associated components like the winding stem and keyless works, serves as the gateway for the wearer to interact with the movement and control various functions of the watch. Its design, including its shape, size, and features like knurling or grooves, is crafted to provide optimal grip and ease of operation.

Related Article: Different Types of Watch Crowns


In conclusion, the intricate world of watch movements unveils the remarkable craftsmanship and engineering that go into creating these timekeeping marvels. We have explored the essential parts of a watch movement, discovering the intricate interplay between components that contribute to accurate timekeeping and the smooth functioning of the timepiece.

From the mainspring that stores the energy to the escapement and balance wheel that regulate the release of that energy, each part plays a vital role in the precise movement of the watch. Understanding these components allows us to appreciate the artistry and dedication that watchmakers pour into their creations. So next time you wear a watch, remember that it is more than just a timepiece; it is a work of art that has been perfected over hundreds of years.

We hope you enjoyed this journey into the world of watch movements. If you have any questions, please feel free to leave them in the comment section below. We will be more than happy to answer them.
